BDCOM Pon Modular EPON 20+++ 9dB

Paraphrased Product Description – BDCOM OLT‑GSFP‑20+++ EPON Module

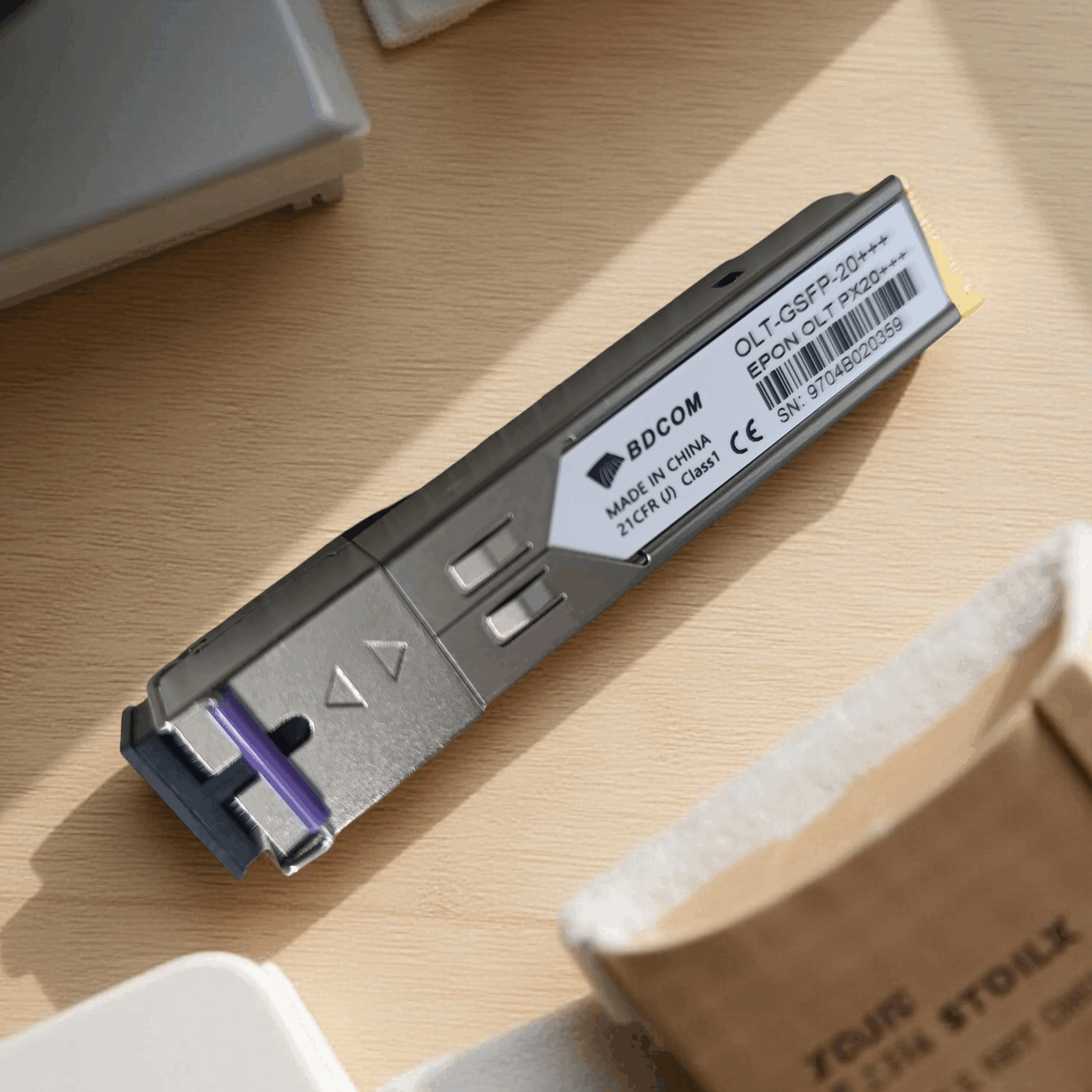

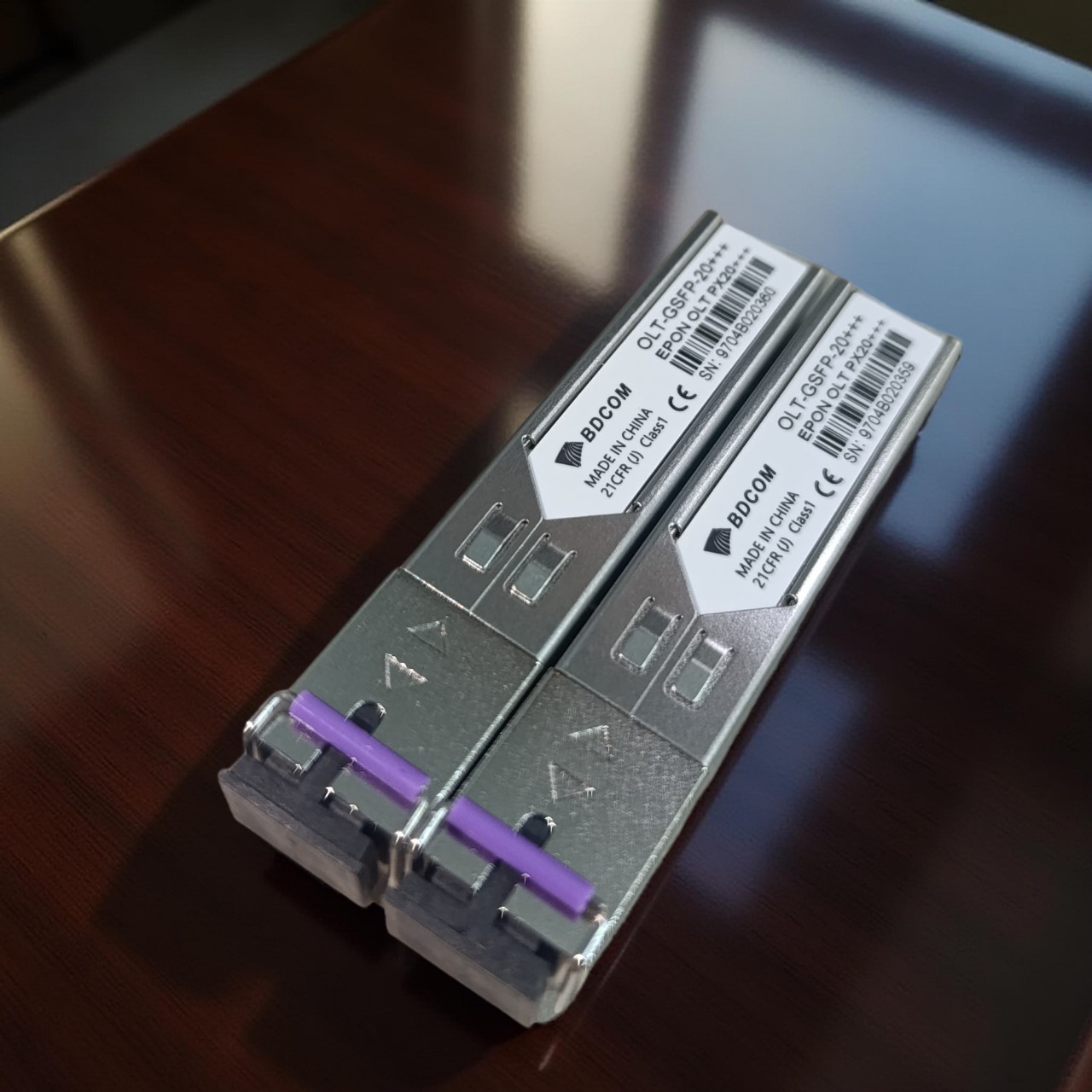

The BDCOM OLT‑GSFP‑20+++ is a high‑capacity EPON transceiver designed for optical line terminals in Gigabit Ethernet Passive Optical Networks. Fully compliant with IEEE 802.3ah and PX 20+++ specifications, it integrates smoothly with standard EPON infrastructures.

Key capabilities:

• 1:64 split ratio: Supports large Point‑to‑Multipoint deployments, connecting up to 64 subscriber lines through a single optical port.

• 1.25 Gbps symmetrical bandwidth: Delivers reliable 1.25 Gbps upstream and downstream throughput for fast data services.

• Single‑fiber full‑duplex operation: Uses a single strand of fiber to handle bidirectional traffic, maximizing fiber utilization and simplifying cabling.

• Long‑reach optics: Output power of ≥ 8 dBm enables stable links over extended distances, ideal for wide‑area coverage.

• Optimized wavelengths: Transmits at 1490 nm (TX) and receives at 1310 nm (RX), ensuring clear separation of upstream and downstream signals.

Why buy from BNTECH?

BN Technology stocks the latest genuine network products and optics in Bangladesh. Order online or drop by our showroom to pick up your OLT‑GSFP‑20+++ module at a competitive price, backed by a 1‑year warranty for peace of mind.
